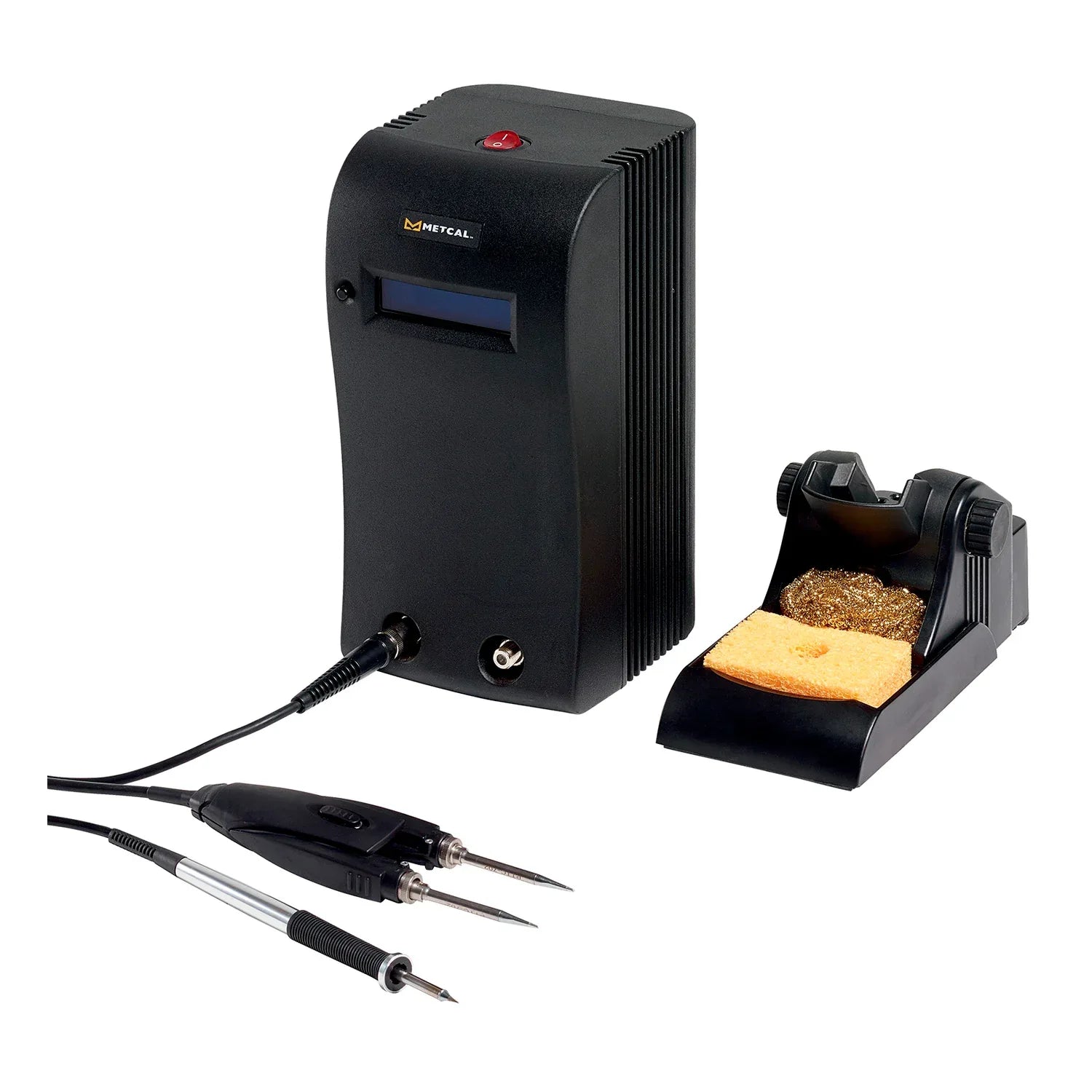

Metcal MX-5241 Soldering System 80W MX-PS5200 with Precision Tweezer Advanced Handpiece and 2 Workstands
The MX-5200 can be operated with two handpieces dynamically sharing the 80-watt output power based on demand, adding even more application flexibility and speed.
FAST TIME-TO-RECOVERY:
Delivers increased production rates and throughput no matter the application. The MX-5200 super-charged power supply seamlessly tackles the challenges of high-mass components, multilayered boards, and lead-free solders.
SMARTHEAT® PROCESS CONTROL:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
| Input Line Voltage: | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption: | 125 W max. |
| Output Power: | 80 Watts max. per channel at 22 °C ambient temperature |
| Output Frequency: | 13.56 MHz |
| Heating Method: | Induction, SmartHeat® |
| Connections: | Dual Port, switchable |
| Power Supply Dim. W x D x H: | 12.1 cm (4.8") x 13.0 cm (5.1") x 23.5 cm (9.3") |
| Power Supply Weight: | 7.4 lbs (3.35 kg) |
| Certification / Marking: | cTUVus, CE |
| Tip-to- Ground Potential: | < 2 mV |
| Tip-to-Ground Resistance: | < 2 Ohm |
| Idle Temperature Stability: | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy: | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length: | 183 cm, 18/3 SJT |
| Warranty: | 5 years |
| Ambient Operating Temp: | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp: | 55 °C (131 °F) |
| Hand-piece Cable Length | L=122 cm (48"), burn proof, ESD safe |
| Hand-piece Connector | F connector |
| Wordstand Dimensions W x D x H | 8.6 cm (3.4") x 19.1 cm (7.5") x 8.3 cm (3.3") |
| Weight of the workstand | 1.05 lbs (.476 kg) |
All used instruments are carefully inspected and tested to ensure reliable performance. We are committed to providing high-quality equipment with accurate descriptions and dependable service.
